DOWNDRAFT PAINT BOOTHS

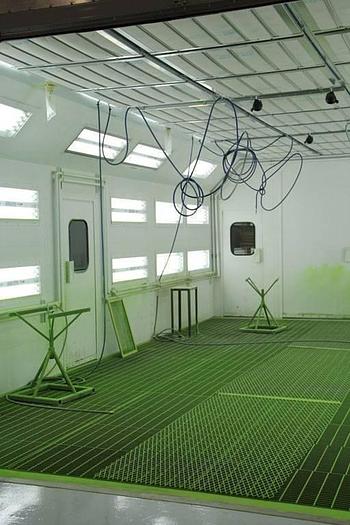

Buy Rite Finishing is proud to offer Rohner Spray Booths to our lineup of quality finishing equipment! A Downdraft Paint Booth draws non-pressurized fresh air down from a filtered ceiling mounted supply plenum, that air then moves down over the work area and out through a grated in-floor exhaust plenum or via an exhaust plenum in an above-grade basement. This provides an optimal spray coverage work environment for your project. Downdraft Paint Booths can be designed as either drive-in/back-out applications or as flow-thru production style booths and are ideal for large capacity finishing systems. Some of the standard features provided in Rohner paint spray booths include: Premium 18 gauge G90 Galvanized steel construction AMCA certified aluminum blade fans with TEFC motor standard UL listed color correct fluorescent light fixtures 20 x 20 Industry standard filters 100 F.P.M. standard booth velocity Welded tube steel product doors Easy nut & bolt assembly with 3D exploded view drawings Optional heated Makeup Air Units (M.A.U.) can be added with high temperature bake cycle. All equipment is designed to meet or exceed NFPA 33 and IFC Chapter 24 requirements. We suggest you consult your local authority for any additional requirements or codes in your area.
