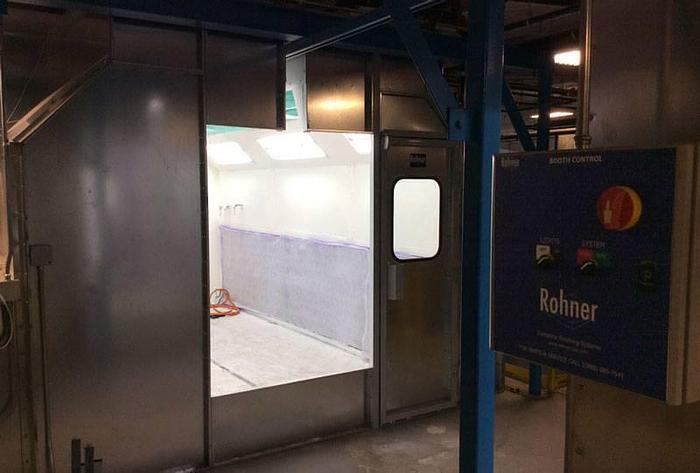

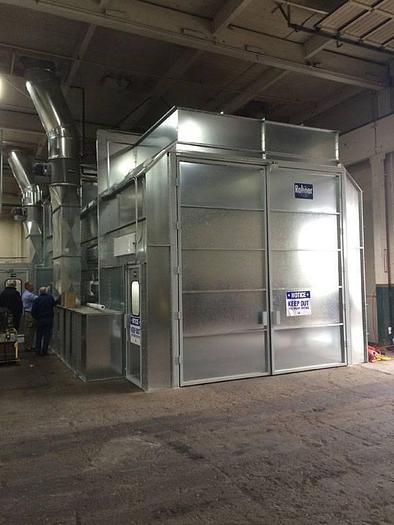

SIDE DOWNDRAFT PAINT BOOTHS

Buy Rite Finishing is proud to offer Rohner Spray Booths to our lineup of quality finishing equipment! A Side Downdraft Paint Booth, or Modified Downdraft Paint Booth, draws non-pressurized & fresh air down from a filtered ceiling supply plenum. That air then moves down over the work area and out through the side walls of the booth. These booths can be designed for either drive-in/back-out applications or as a flow-thru production style booth and are ideal for large capacity finishing systems. Some of the standard features provided in Rohner paint spray booths include: Premium 18 gauge G90 Galvanized steel construction AMCA certified aluminum blade fans with TEFC motor standard UL listed color correct fluorescent light fixtures 20 x 20 Industry standard filters 100 F.P.M. standard booth velocity Welded tube steel product doors Easy nut & bolt assembly with 3D exploded view drawings Optional heated Makeup Air Units (M.A.U.) can be added with high temperature bake cycle. All equipment is designed to meet or exceed NFPA 33 and IFC Chapter 24 requirements. We suggest you consult your local authority for any additional requirements or codes in your area.
