EcoGel Inline Drying Systems - CEFLA

Ecogel offers 3 solutions for rapid drying processes for paints with low dry residue, and for solvent evaporation

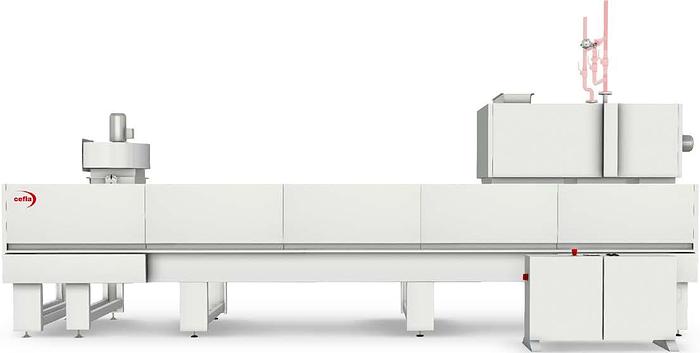

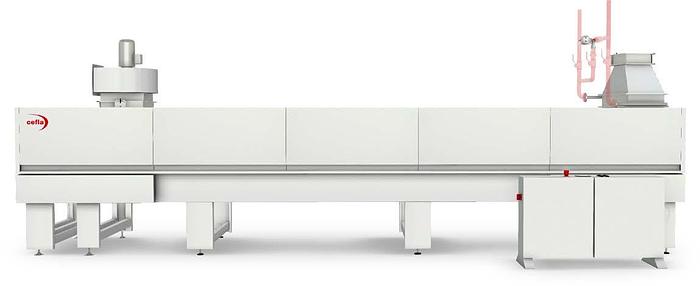

EcoGel E modular system is a modern, effective, flexible solution to in-line drying needs. Extremely practical thanks to its continuous panel conveyor system. The oven contains a laminar hot air flow with adjustable recirculation, in the opposite direction to panel feed. Hold time inside the oven can be adjusted on the basis of panel feed speed. Drying takes just a few minutes, making this system ideal for the flash-off or rapid drying of paints with low dry residue. Also recommended for flash-off in glue applications.

EcoGel MPS is the latest in the development of in-line UV drying technology, perfect for high quality finishes. It guarantees the maximum uniformity of color and opacity across the surface with minimal solvent emission. A high power UV lamp emits radiation which strikes the layer of paint applied to the panels by means of convex reflectors placed at a decreasing distance from the panels. This gradual increase in UV emission power considerably reduces gelation time and energy use. This configuration is an excellent alternative to the low power TL lamps normally used, and should be installed downstream of solvent evaporation and upstream of direct irradiation with high power UV lamps for final curing of the surface layer.

EcoGel ALD combines the laminar air flow and UV radiation. It is the most flexible solution for the rapid evaporation of solvents from paints (applied by curtain coaters or sprayers), prior to UV drying. This oven is very convenient use, it is modular and produces a very high quality finish. Complete with a continuous panel conveyor system, it can be fitted with low pressure UV lamps for gelation to ensure a completely powder-free interior.

• Automatic ventilation air temperature control
• Can be fitted with IR lamps
• Insulated structure for energy saving
• Extremely practical thanks to its integral continuous conveyor system
